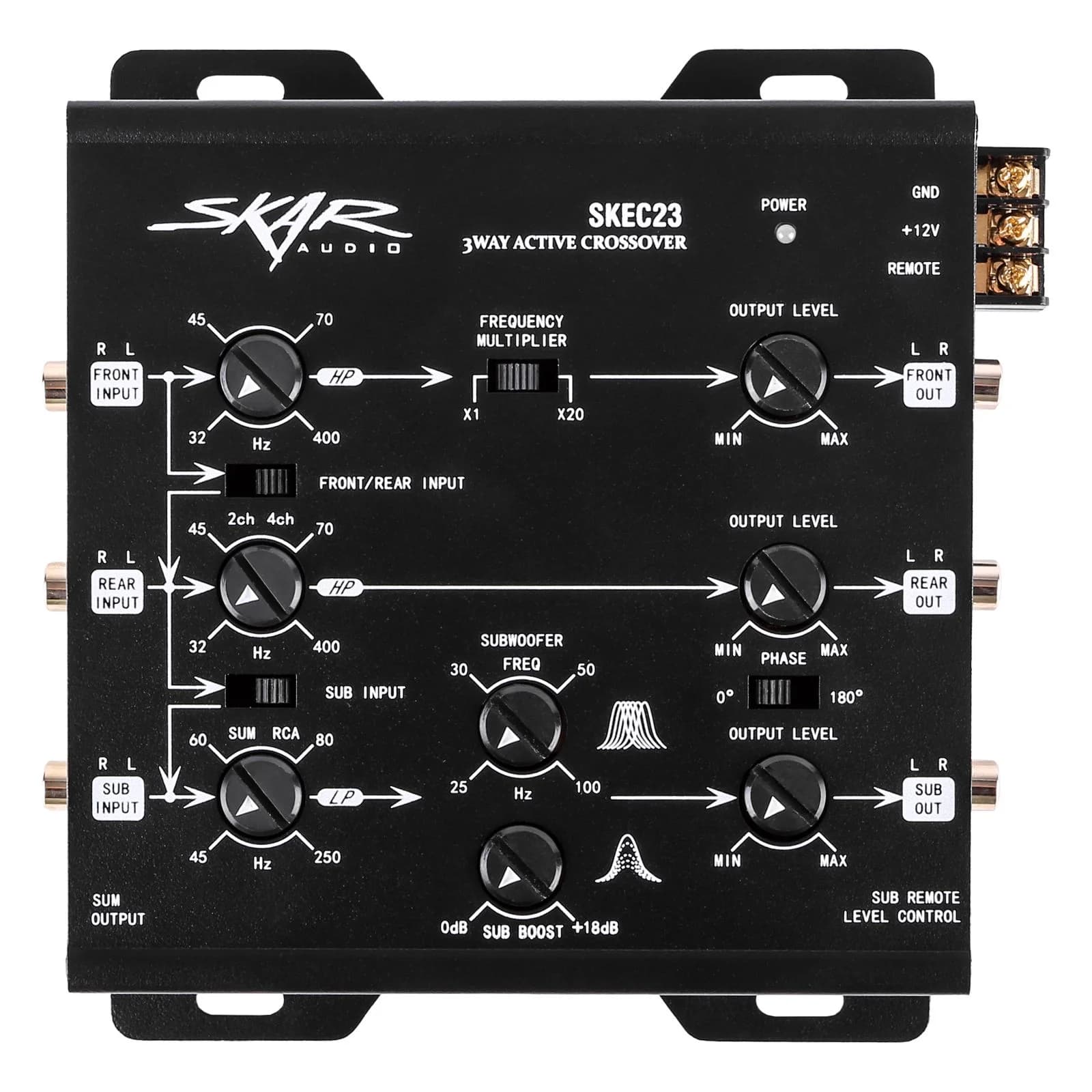

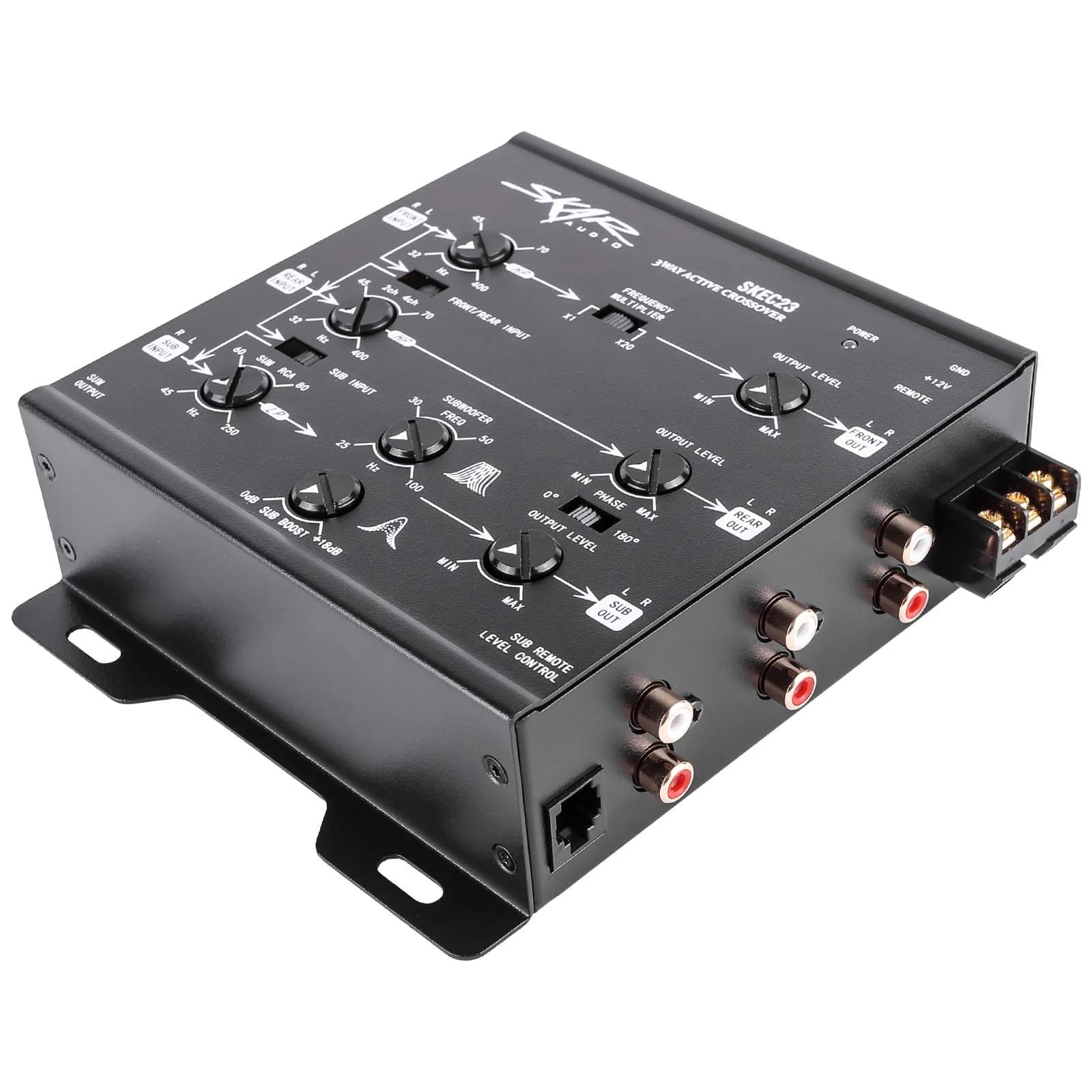

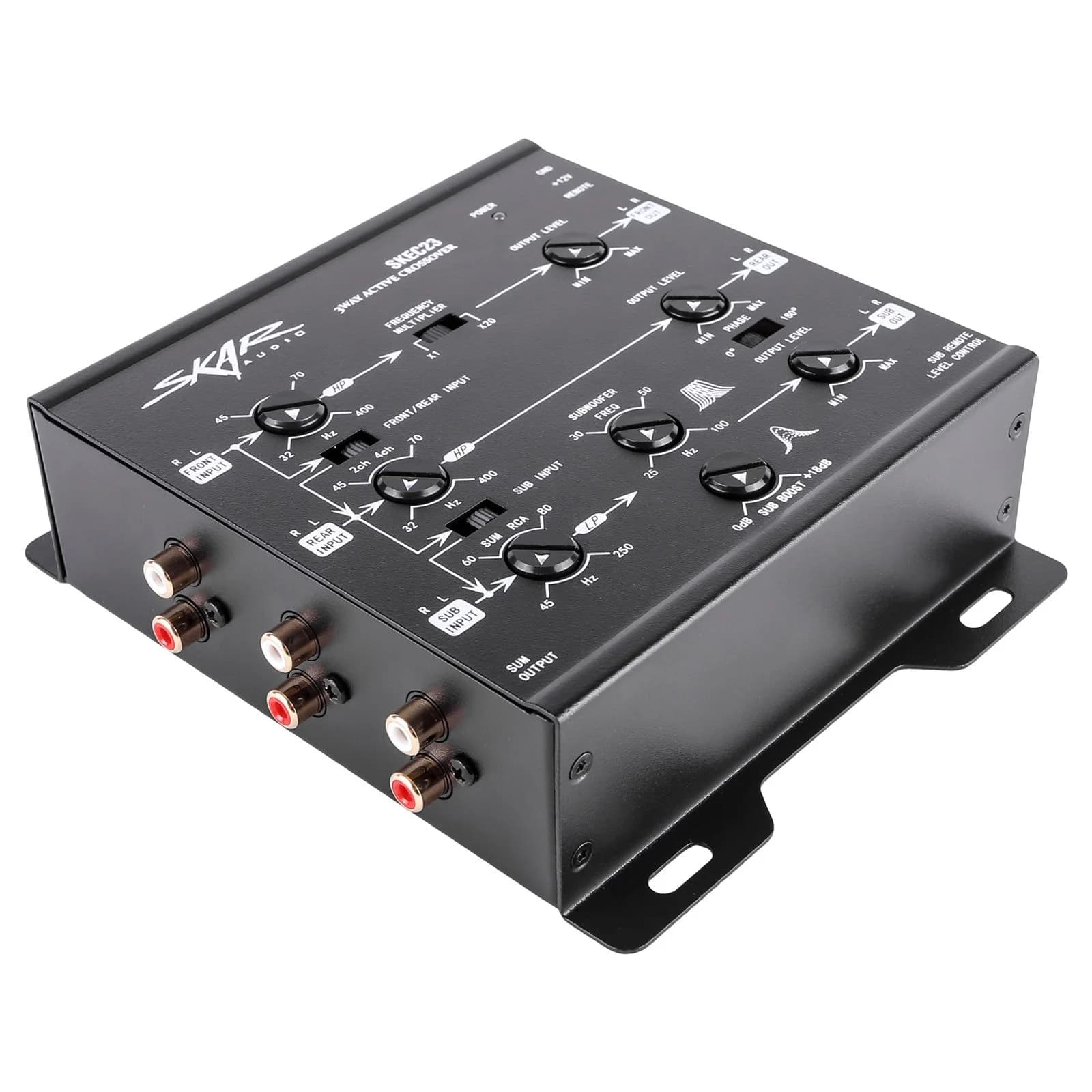

Skar Audio introduces our SKEC23 3-way electronic crossover, a cutting-edge solution that brings precision and control to your car audio system like never before. This 6-channel (3 RCA inputs, 3 RCA outputs) electronic crossover is designed to elevate your listening experience, offering a wide range of features for optimal sound customization. The inputs for front, rear, and subwoofer channels ensure seamless integration with your existing setup, while the high-pass control for front and rear outputs guarantees crystal-clear sound for your speakers. The non-fade low-pass output and adjustable low-pass gain allow you to achieve deep bass, and the built-in subwoofer bass boost feature further enhances the low-frequency response, giving your music depth and punch.

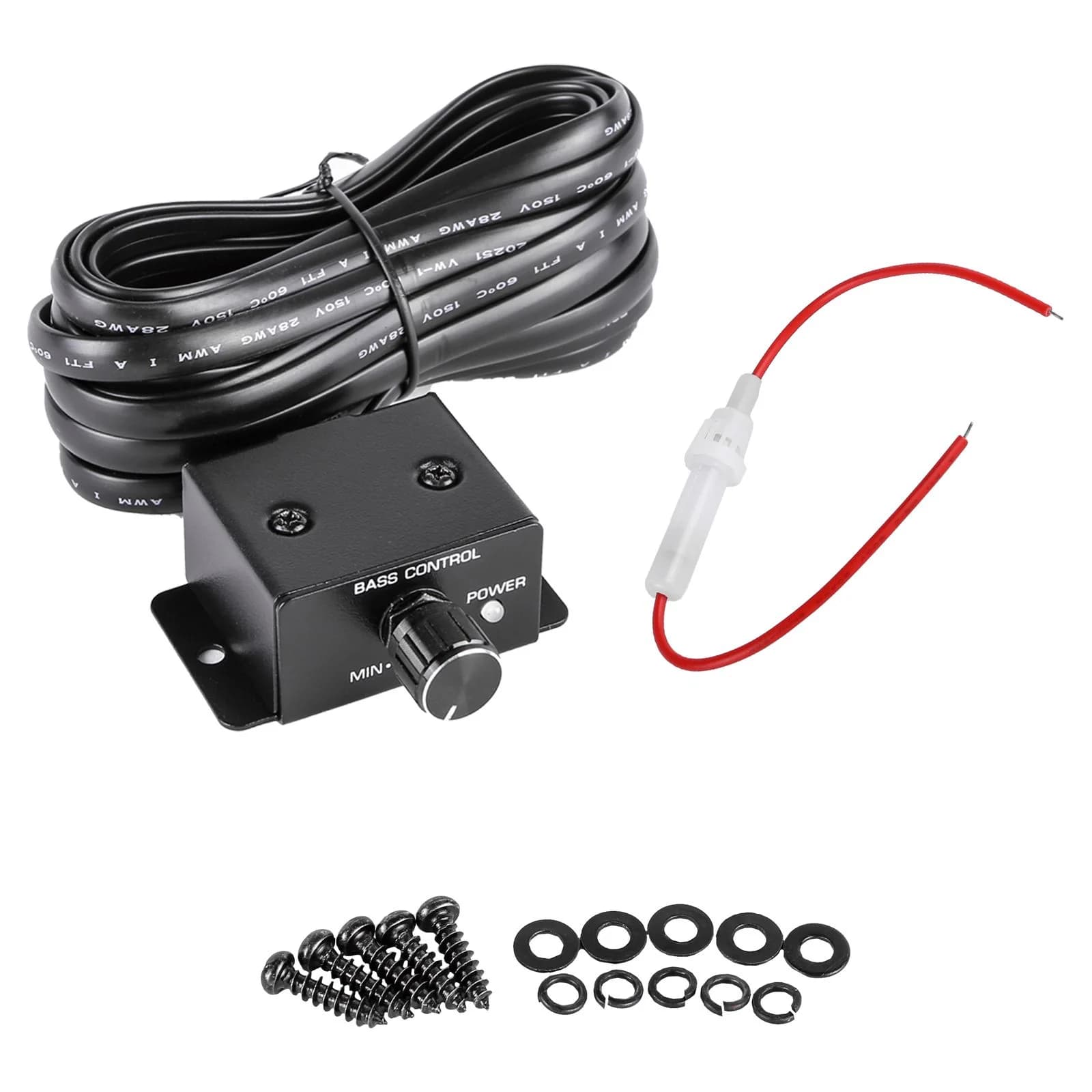

This electronic crossover provides unmatched control and also ensures seamless and reliable performance. Featuring a 5-Volt RCA Output rating, this crossover proves highly beneficial when your source unit possesses a lower output voltage. The gold-plated RCA input and output connectors helps to guarantee optimal signal transfer, reducing the risk of signal degradation. For added convenience, a remote subwoofer level control is included, enabling you to make real-time adjustments to the subwoofer output without leaving your seat. This 3-way electronic crossover is a must-have addition to your car audio system.
- MPN: SKEC23
- UPC: 810028813496
- THD: 0.004% @ 1V/1kHz (Front), 0.001% @ 1V/1kHz (Rear), 0.2% @ 1V/1kHz (Subwoofer)
- Type: 3-Way Electronic Crossover

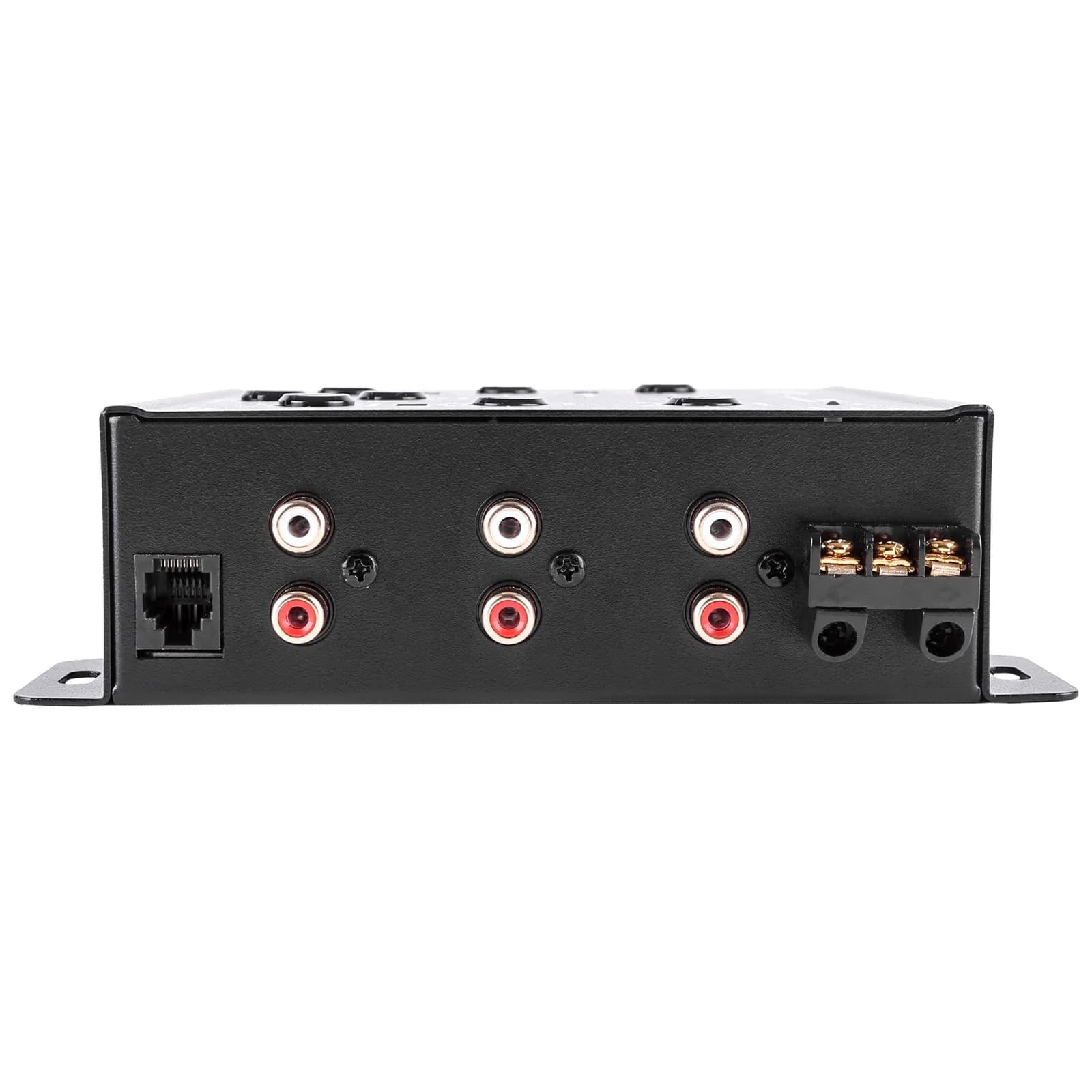

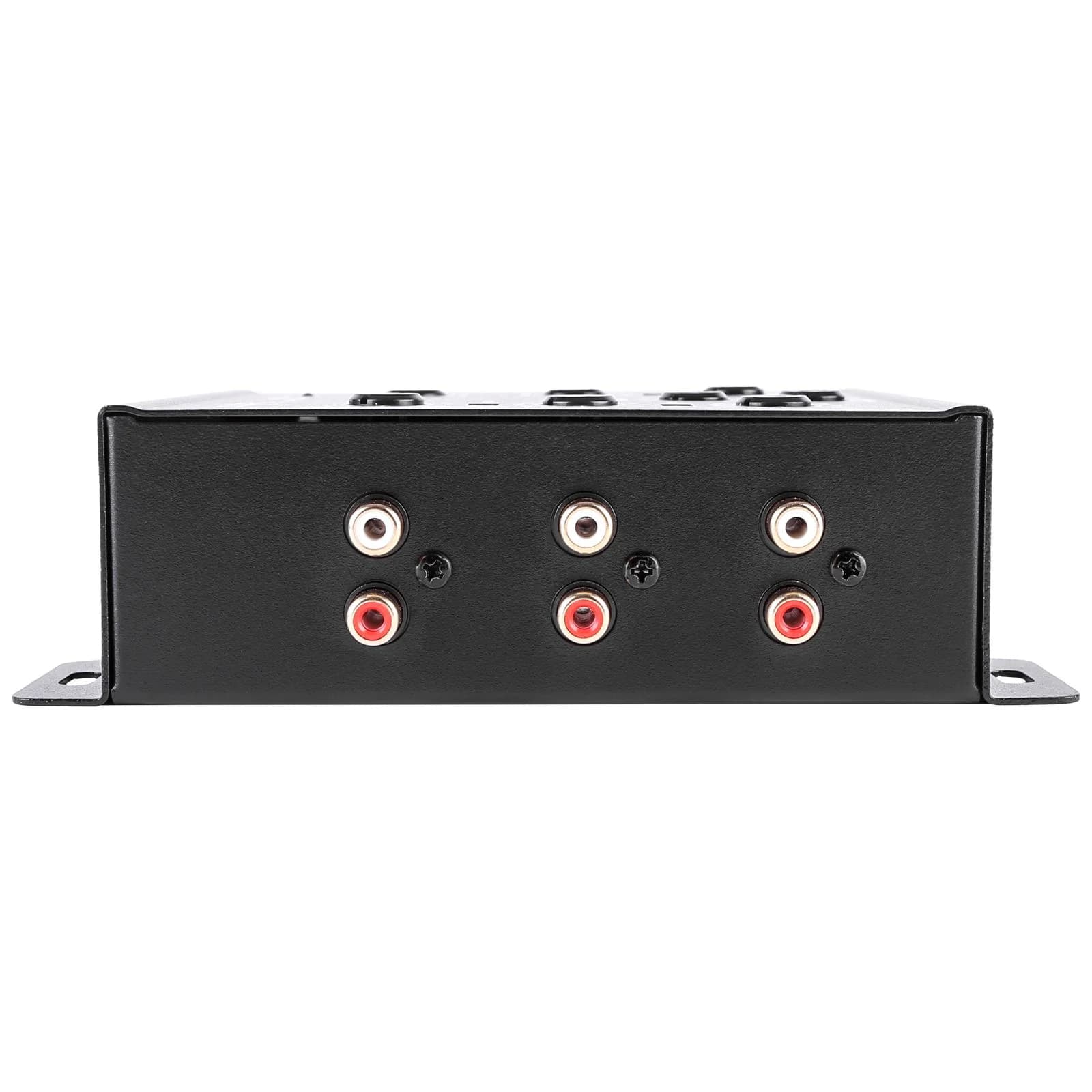

- Inputs: 3 RCA Inputs (Front, Rear, u0026 Subwoofer)
- Output:
- Outputs: 3 RCA Outputs (Front, Rear, u0026 Subwoofer)
- DIN Size:
- EQ Dimensions: 6.45" W x 6.74" D x 1.90" H
- Level Controls: Front, Rear u0026 Subwoofer
- Volume Controls:
- Operating Voltage: 14.4 Volts DC
- Built-In Line Driver: Yes
- Signal-to-Noise Ratio: 107 dB (Front), 108 dB (Rear), 96 dB (Subwoofer)
- Max RCA Output Voltage: 5 Volts
- Lowpass Frequency Switch:
- Number of Frequency Bands:
- Adjustable Frequency Bands:
- Ground Loop Isolation Circuit: Yes
- Installation Hardware Included:
- Frequency Bands Adjustment Range:
- User Manual (PDF):
