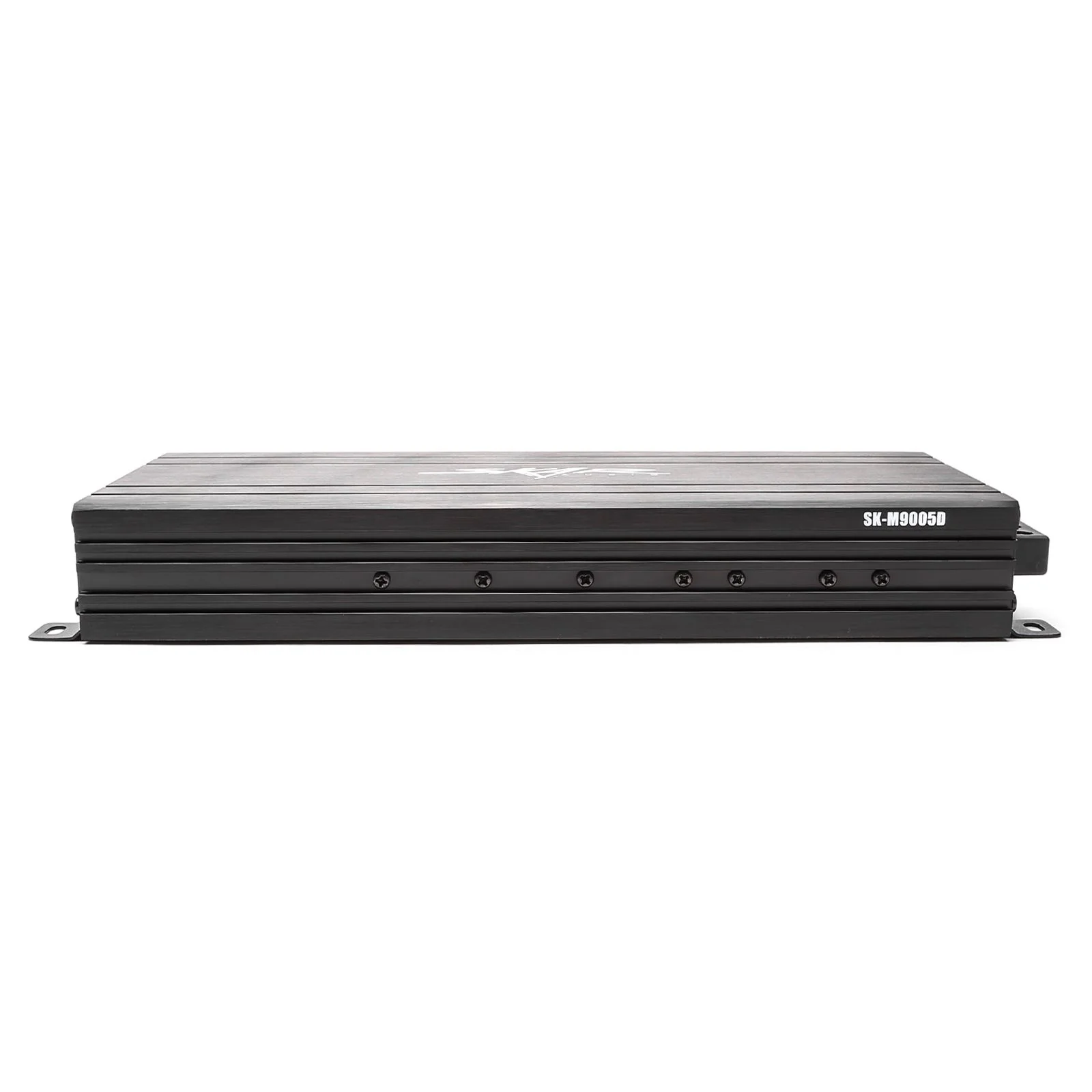

The Skar Audio SK-M9005D full-range five channel amplifier offers high performance from an ultra-compact chassis. This Class D amplifier uses less power, takes up less space, and generates less heat than traditional amp designs, making it the perfect solution when space is at a premium and sound quality is the ultimate goal. Don’t let its size fool you, the SK-M9005D boasts an impressive 900 Watts of power, providing the versatility to power multiple sets of speakers as well as a subwoofer system.

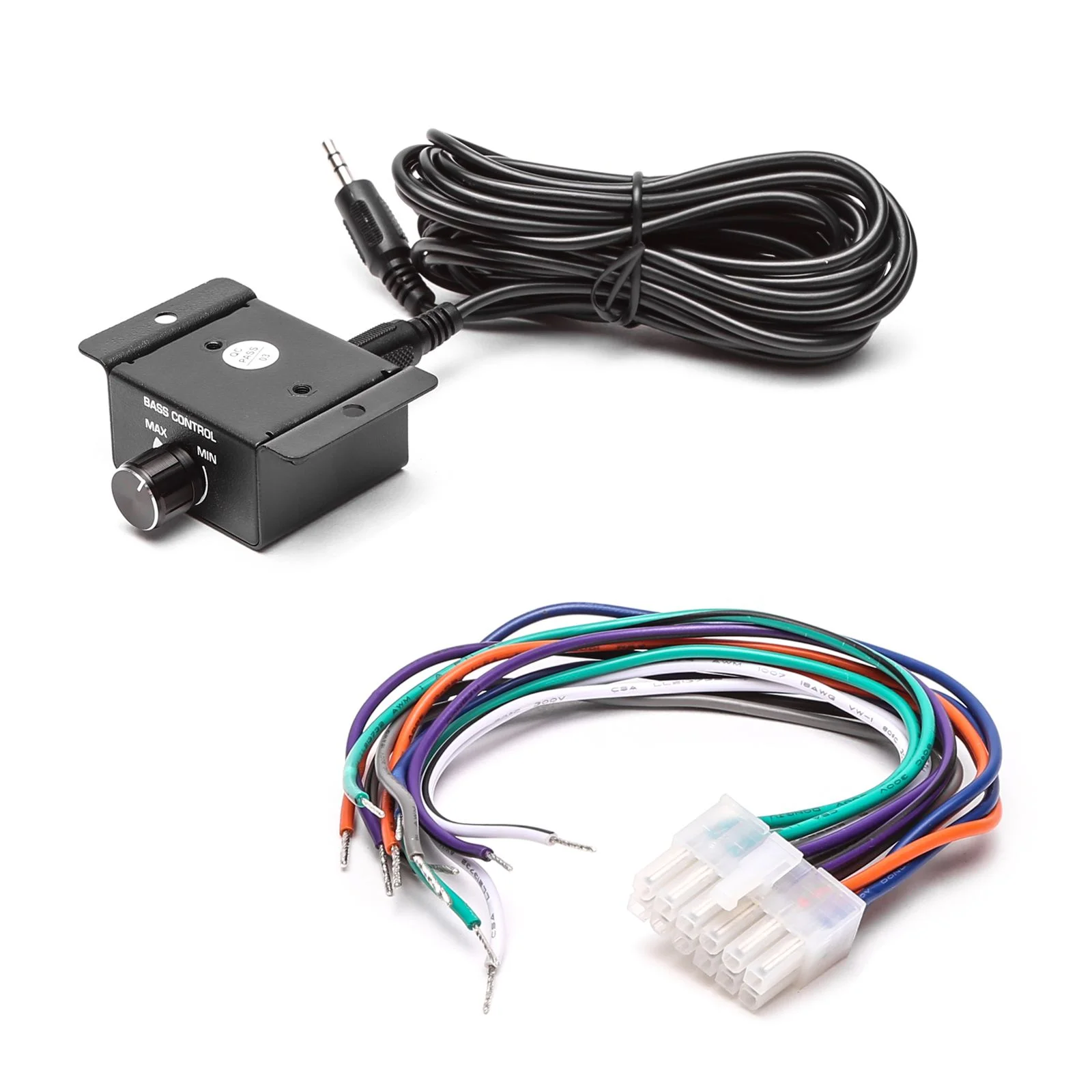

The SK-M9005D provides you with the tone controls you need to tune your system so that your speakers and sub sound their best. Utilizing the high-pass filters, you can remove the extreme low bass from your full-range speakers, so they’ll play more efficiently. You can adjust the subwoofer channel’s low-pass filter and bass boost to get just the right bass tone. This five channel amplifier comes with a remote bass knob and cable, providing the ability to control the bass from the dash. In addition, the SK-M9005D utilizes a Molex Connector for the speaker outputs allowing for an easier installation.
- Type: 5-Channel Car Amplifier
- Class: D
- Bridgeable: Yes
- Strappable: No
- Fuse Rating: 80 Amp
- MOSFET Type: High Speed MOSFET Power Supply
- Damping Factor: 100u003c
- Amplifier Width: 4.65"
- Bass EQ (Boost): Yes (0 – 18 dB)
- Output Channels: 5
- RCA Line Output: No
- Turn-On Circuit: Soft Turn-on Circuit
- Working Voltage: 8.5V – 14.4V
- Amplifier Height: 1.70"
- Amplifier Length: 12.43"
- Subsonic Control:
- Tri-Mode Capable: Yes
- Frequency Response: 20Hz – 20kHz for CH 1-4 u0026 20Hz-250Hz for CH 5
- RMS Power at 1 Ohm:
- Built-in Crossovers: Channels 1-4 (HPF / Full-Range / LPF) u0026 Channel 5 (LPF)
- Peak Power at 1 Ohm:
- RMS Power at 2 Ohms: 85 Watts x 4 Channels + 450 Watts x 1 Channel (14.4v)
- RMS Power at 4 Ohms: 55 Watts x 4 Channels + 300 Watts x 1 Channel (14.4v)
- Efficiency at 4 Ohms: 0.74
- Protection Built-in?: Yes – 4-Way (Thermal‚Voltage‚Speaker‚DC)
- Power u0026 Ground Inputs: 8 Gauge
- Signal-to-Noise Ratio: 85 dB
- Low Level Input (Gain): 8V – 0.2mV
- Low Pass Filter (Variable):
- High Pass Filter (Variable):
- Power u0026 Protection Indicators: Yes – LED Indicators
- RMS Power at 4 Ohms (Bridged): 170 Watts x 2 Channels (14.4v)
- Hi-Level Speaker Input Connection: No
- Remote Bass Knob u0026 Cable Included: Yes
- MPN: SK-M9005D
- UPC: 739189979172
- Low-Pass Filter: ["20Hz – 500Hz","20Hz – 500Hz","50Hz – 500Hz"]
- High-Pass Filter: ["20Hz – 500Hz","20Hz – 500Hz"]
- Crossover Multiplier: ["N/A","N/A"]
- Crossover Type (Switchable): ["High-Pass Filter / Full-Range / Low-Pass Filter","High-Pass Filter / Full-Range / Low-Pass Filter","Low-Pass Filter"]
- Dynamic (Peak) Power at 1 Ohm:
- Certified (RMS) Power at 1 Ohm:
- Dynamic (Peak) Power at 2 Ohms:
- Dynamic (Peak) Power at 4 Ohms:
- Certified (RMS) Power at 2 Ohms:
- Certified (RMS) Power at 4 Ohms:
- User Manual (PDF): https://www.skaraudio.com/user-manuals/amplifiers/SK-M-Series-User-Manual.pdf
- Low-Pass Filter: ["20Hz – 500Hz","20Hz – 500Hz","50Hz – 500Hz"]
- High-Pass Filter: ["20Hz – 500Hz","20Hz – 500Hz"]
- Crossover Multiplier: ["N/A","N/A"]
- Crossover Type (Switchable): ["High-Pass Filter / Full-Range / Low-Pass Filter","High-Pass Filter / Full-Range / Low-Pass Filter","Low-Pass Filter"]
