Designed by our engineers to be unmatched in quality, performance, and usability, the Skar Audio SK-DIST-BLK5 power distribution block features (x2) 4 gauge inputs to (x4) 4/8 gauge outputs (reducer shims included). Featuring a highly conductive solid zinc alloy construction, this block is unmatched in current transfer and performance and is the ideal choice when looking to distribute power throughout in your car audio system

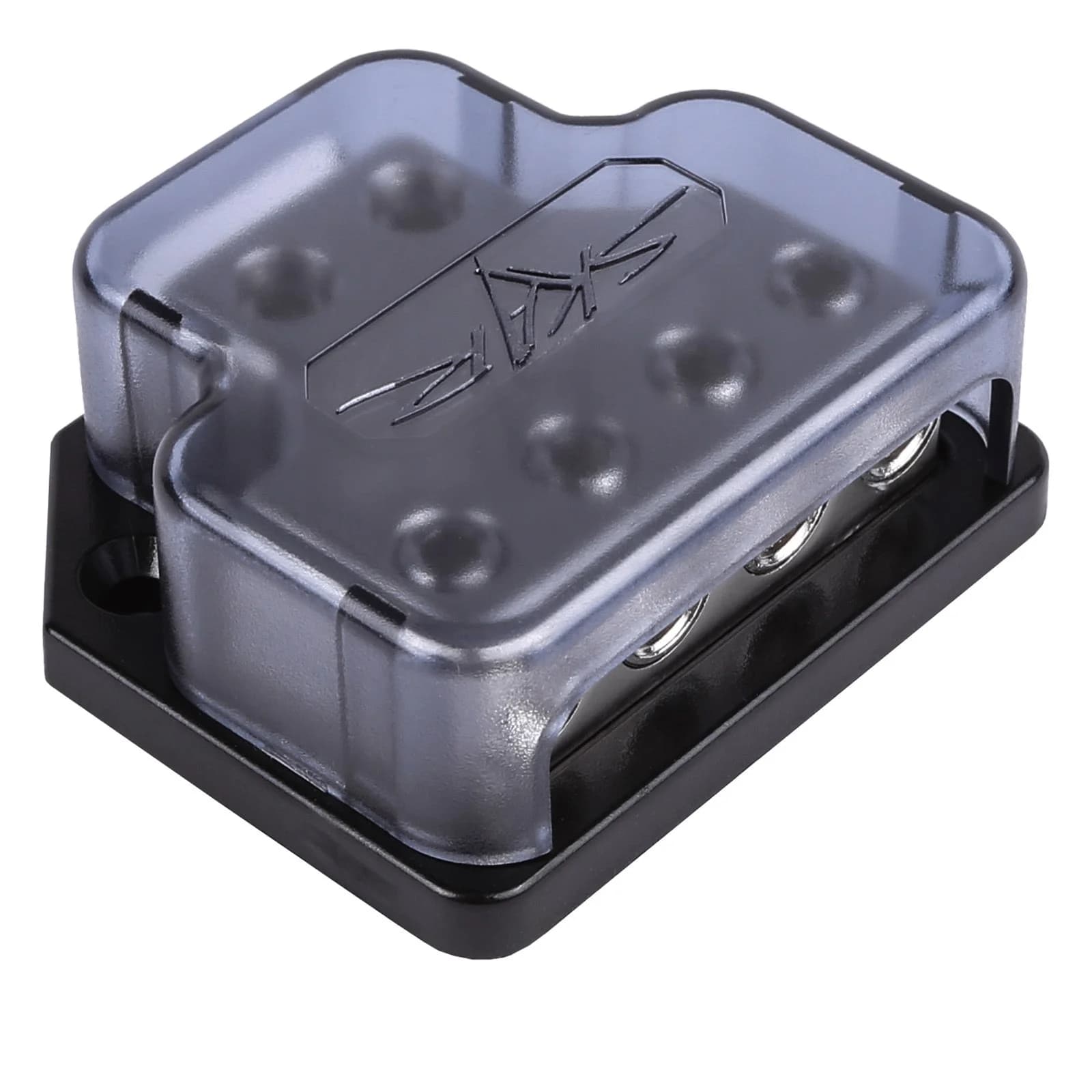

The high strength polymer mounting base of the block features pre-threaded holes allowing it to be safely mounted and secured. Additionally, this block Includes a premium smoked gray plastic cover that firmly attaches to the base and offers added protection and a sleek and attractive appearance.
- Type: Power Distribution Block
- Style:
- Mountable?: Yes – Predrilled Mounting Holes for Easy Installation
- Core Material: Copper
- Terminal Style:
- Exterior Finish: Nickel Plated
- Number of Inputs: 2
- Number of Outputs: 4
- Input Terminal Size: 4 AWG
- Allen Set Screw Size: x6 – 4mm Hex Set Screws
- Negative Terminal(s):
- Output Terminal Size: 4 AWG or 8 AWG
- Positive Terminal(s):
- Ring Terminal Opening:
- Wire Size Compatibility: Accepts True (AWG) Gauge Wire

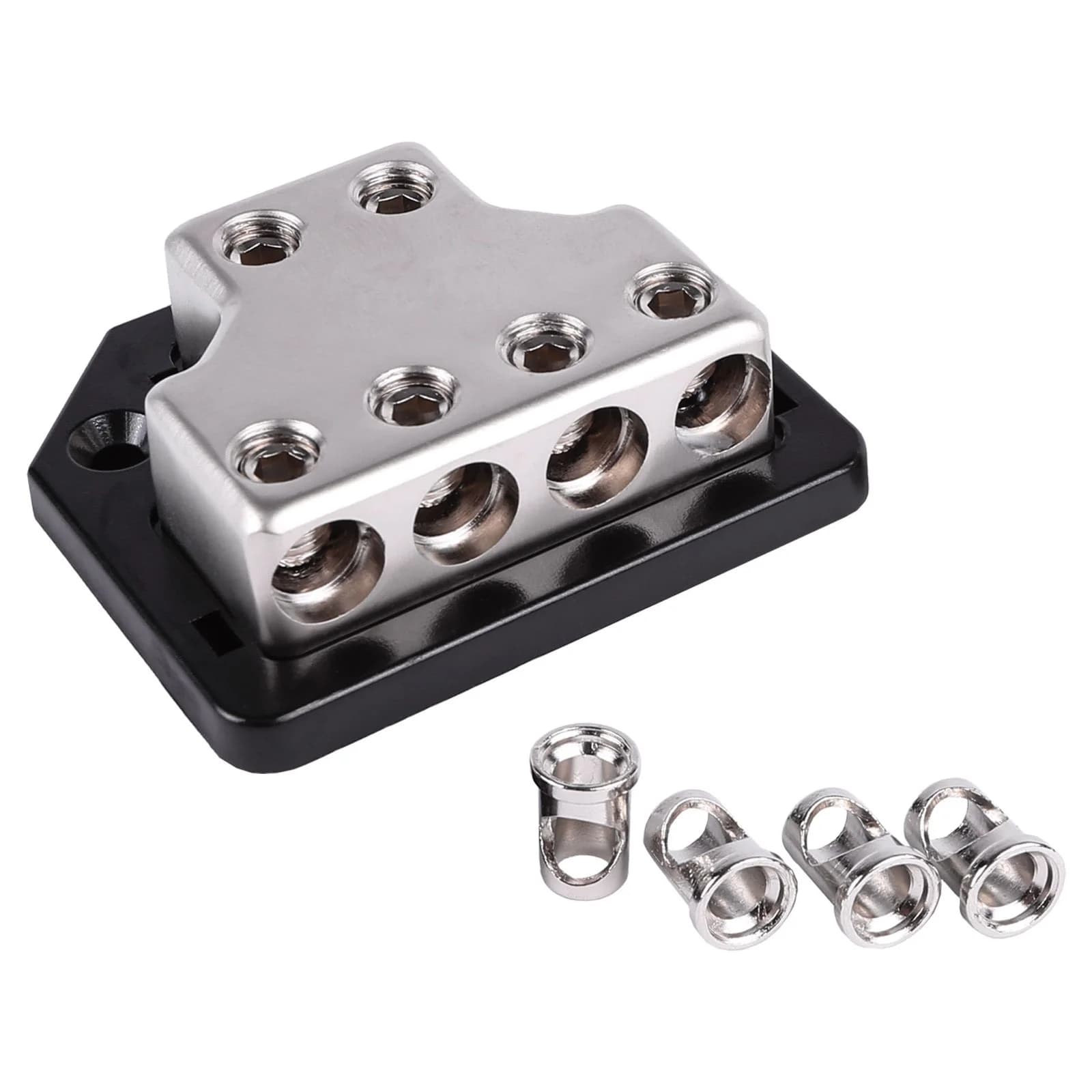

- Wire Reducer(s) Included?: Yes – x4 4 to 8 AWG Reducers Included
- Protective Cover Included?: Yes – Heat Resistant Protective Cover
- Accepts Following Wire Size: True (AWG) Gauge Wire
- Installation Hardware Included:
- Secondary Allen Set Screw Size:
- MPN: SK-DIST-BLK5
- UPC: 810028812505
