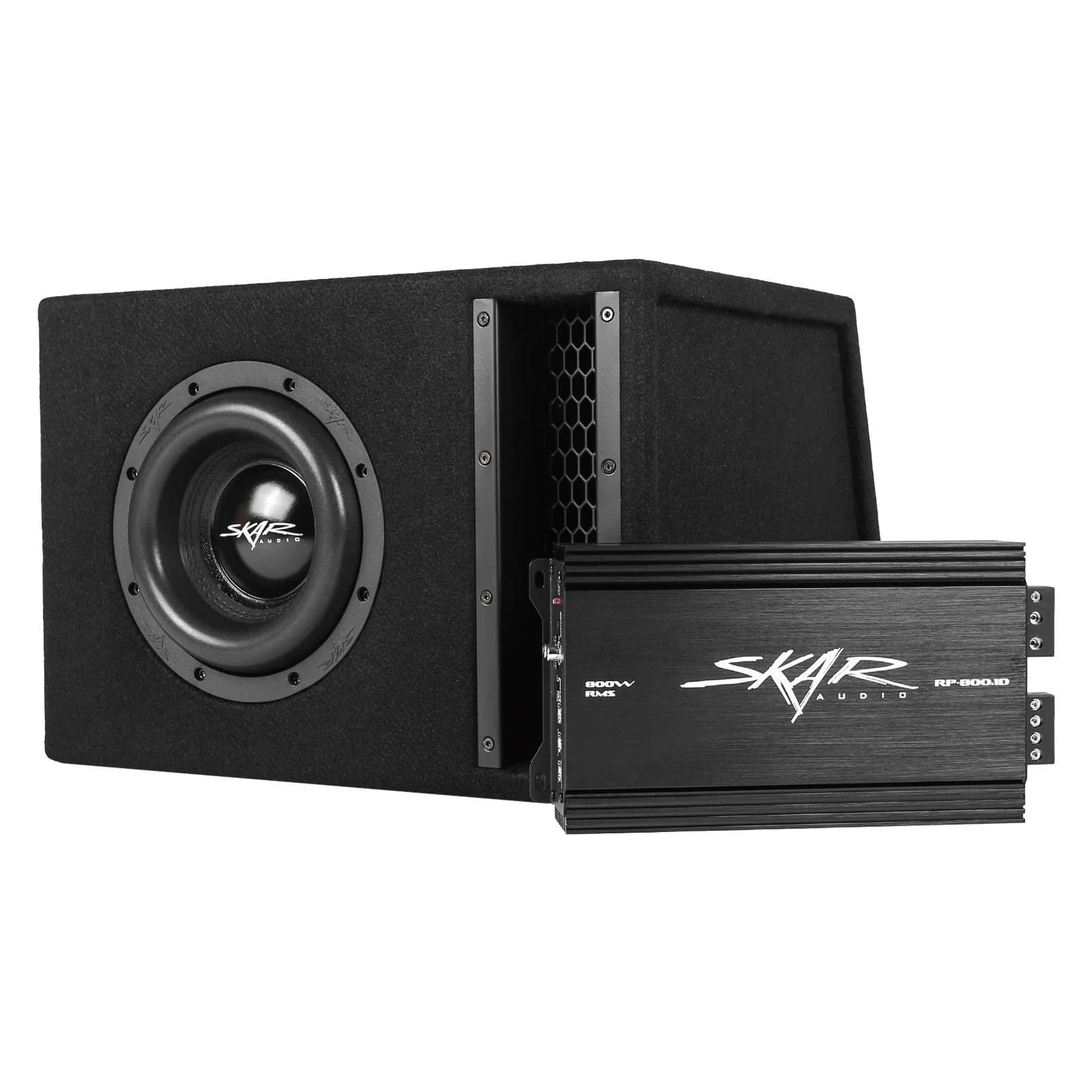

Skar Audio designed the EVL-1X8D2 Complete Bass Package to offer a truly unique system for those audiophiles seeking serious bass in a small footprint. This package features one Skar Audio EVL-1X8D2 loaded enclosure, which houses an EVL-8 D2, one of our most popular 8-inch subwoofers. Rated at 1,200 Watts peak power, don’t let the size fool you, this enclosure produces tremoring amounts of bass.

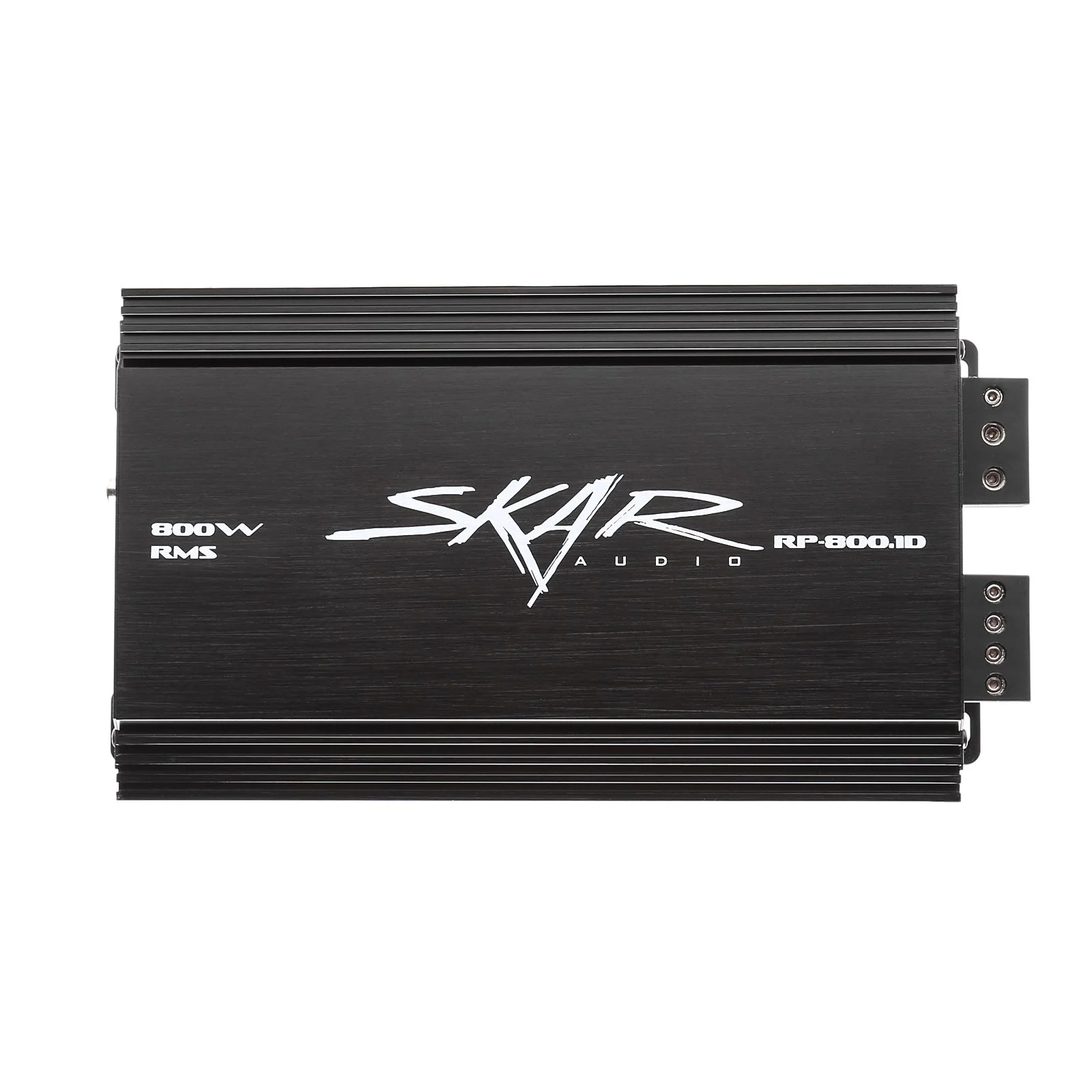

From there, we pair the loaded enclosure with our perfectly matched 800-Watt Monoblock Class D amplifier, which will provide all the juice and then some that this subwoofer needs to perform to it’s greatest potential. The RP-800.1D is stout, powerful, and will provide safe and optimal power to the included subwoofer.

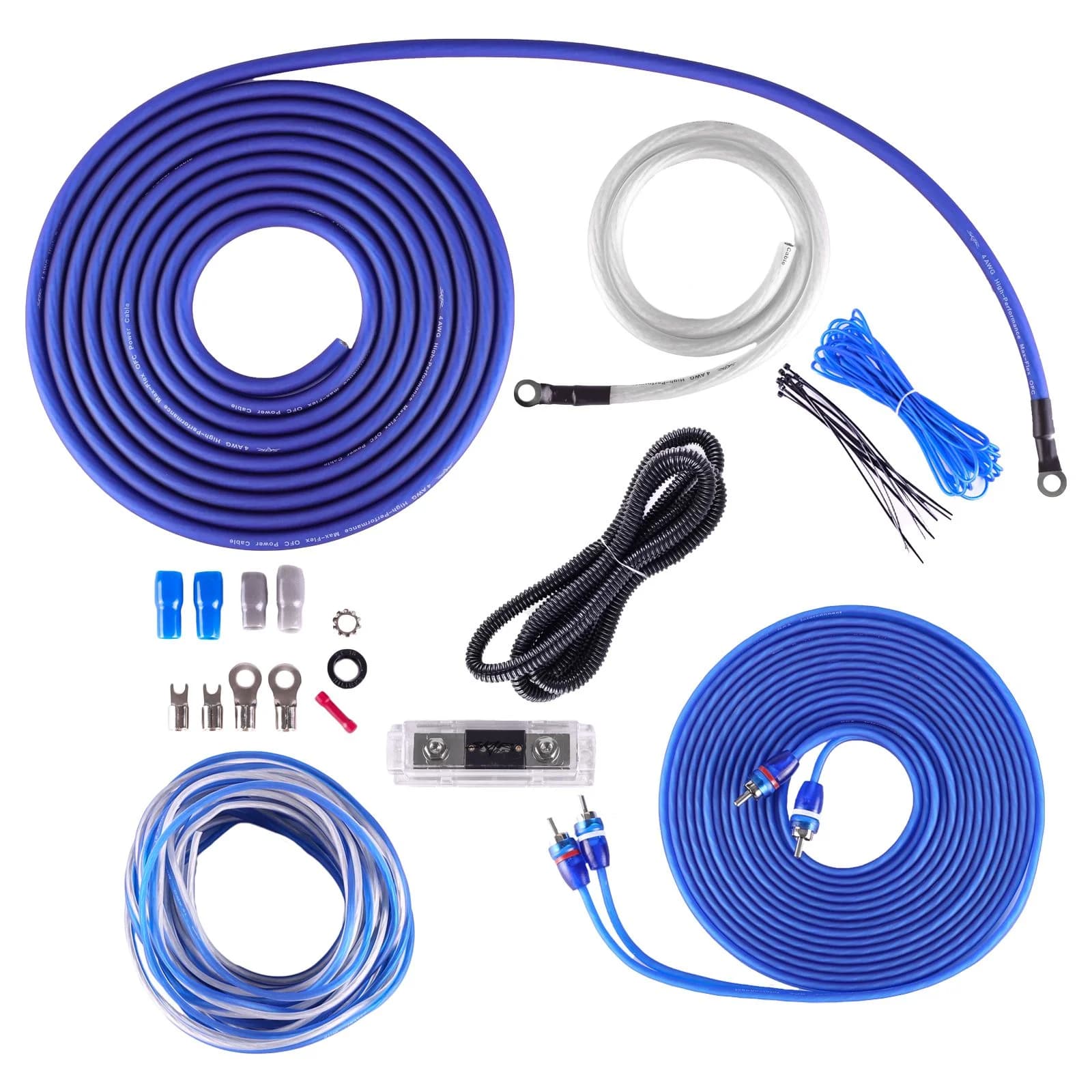

Finally, we include a premium, oxygen free copper, 4-gauge amplifier wiring kit to wire up your new system. The wiring kit is made up of only the highest quality copper and includes a wide variety of additional accessories to make install a breeze. The subwoofer comes pre-wired and loaded inside of the enclosure allowing for an easy and hassle free installation. The dual 2-ohm subwoofer is wired up inside of the enclosure so that the final impedance load is configured for 1-ohm at the terminals.
- Type: Single 8" Ported 1‚200W Peak Power Complete Loaded Subwoofer Enclosure Bundle
- RMS Power: 600 Watts
- Peak Power: 1,200 Watts
- Subwoofer Size: 8"
- Amplifier Model: RP-800.1D
- Loaded Enclosure Model: EVL-1X8D2
- Amplifier Wiring Kit Model: SKAR4ANL-OFC
- MPN: BNDLE-EVL-1X8D2-RP-800.1D-SKAR4ANL-OFC
- UPC: 810028812352
- Height: 12.50"
- Port Width: 1.80"
- Enclosure Type: Single – 8" Vented Wedge Style Enclosure
- Enclosure Length: 18.35"

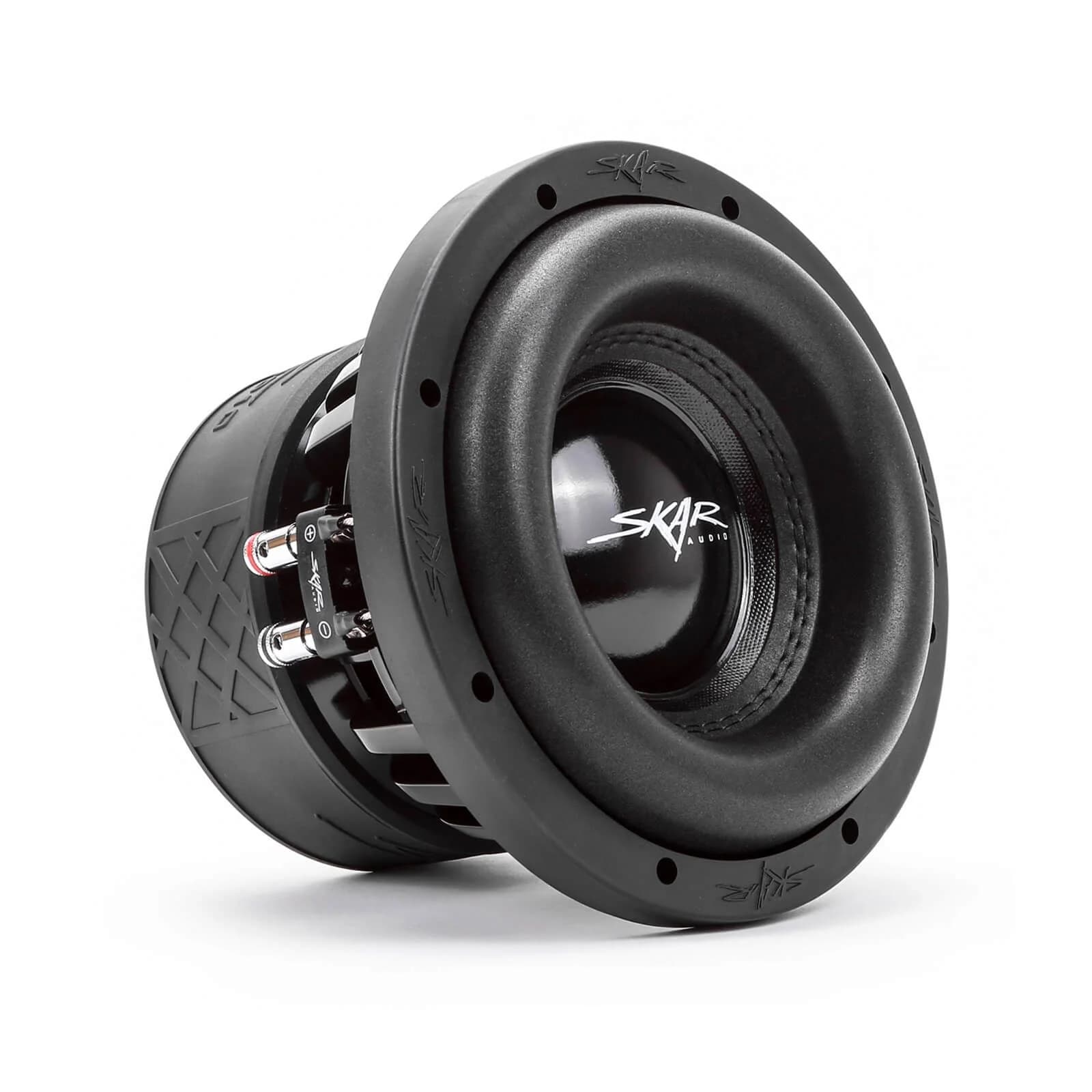

- Subwoofer Model Included: EVL-8 D2
- Included Loaded Enclosure: EVL-1X8D2
- Enclosure Depth 1 (Bottom): 16.50"
- Enclosure Depth 2 (Bottom): 12.90"
- Wood Thickeness u0026 Material: 5/8" MDF
- Tuning Frequency of Enclosure: 36 Hz
- Final Impedance Load at Terminal Cup: 1 Ω
- Fuse Rating: 80 Amp
- Power Supply: High Speed MOSFET Power Supply
- Amplifier Type: Class D Monoblock
- Amplifier Model: RP-800.1D
- Amplifier Width: 6.20"
- Working Voltage: 8.5V – 14.4V
- Amplifier Height: 2.25"
- Amplifier Length: 10.13"
- Included Amplifier: RP-800.1D
- RMS Power at 1 Ohm: 800 Watts x 1 Channel (14.4v)
- Peak Power at 1 Ohm: 1200 Watts x 1 Channel (14.4v)
- Power u0026 Ground Input Size: 4 Gauge
- Remote Bass Knob u0026 Cable Included: Yes
- Wire Type: Oxygen Free Copper (OFC)
- ANL Fuse Size: 120 Amp – Fuse Holder Included
- Included Wiring Kit: SKAR4ANL-OFC
- Included Accessories: Ring/Ground Terminals u0026 Vinyle Cable Ties
- Power Wire Length u0026 Type: 17 Ft – Matte Blue 4 AWG OFC Wire
- Ground Wire Length u0026 Type: 3 Ft – Matte White 4 AWG OFC Wire
- Amplifier Wiring Kit Model: SKAR4ANL-OFC
- Speaker Wire Length u0026 Type: 20 Ft – Matte Blue/White 16 AWG OFC
- RCA Interconnects Length u0026 Type: 17 Ft – 2-Channel
- Remote Turn-on Wire Length u0026 Type: 17 Ft – Blue OFC Wire
