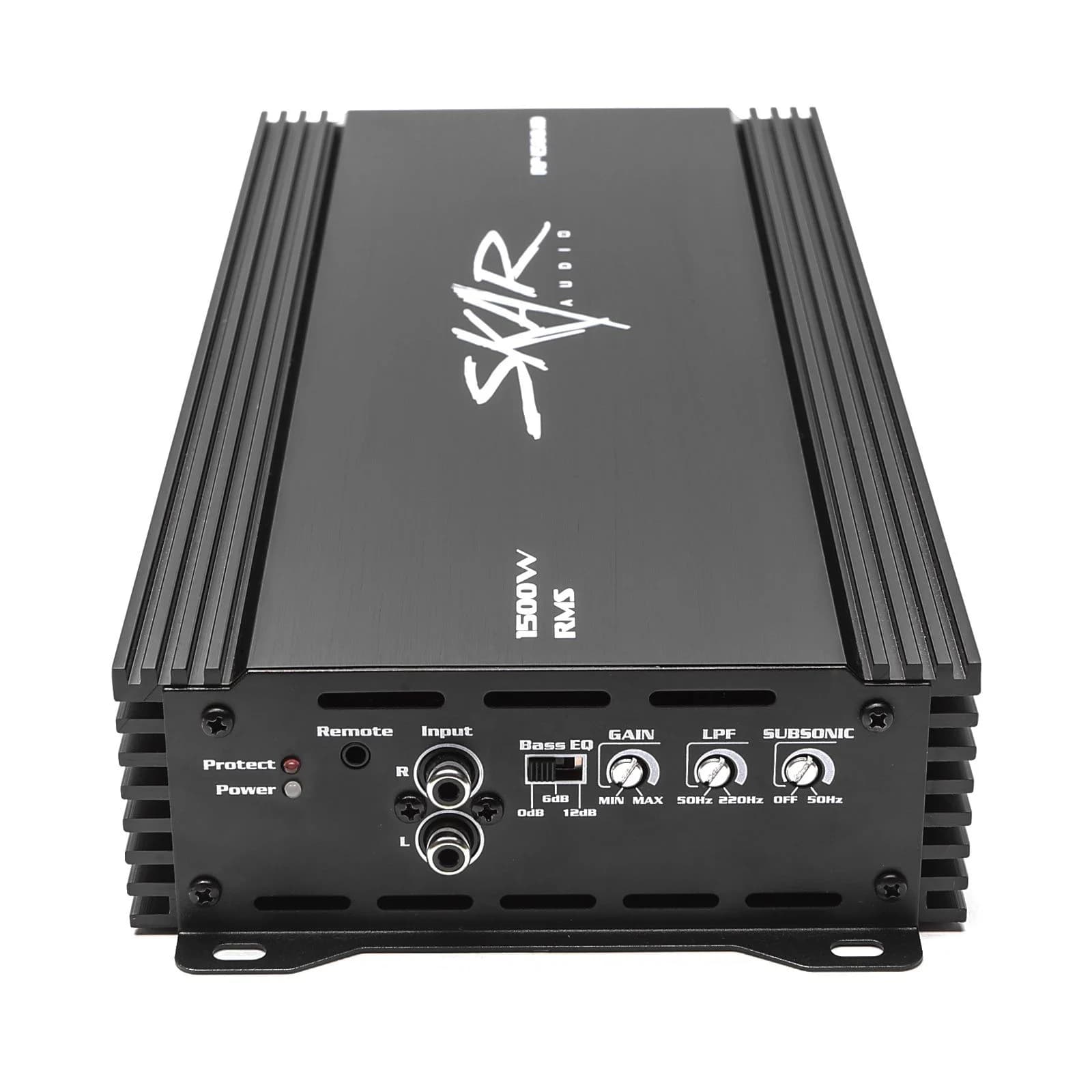

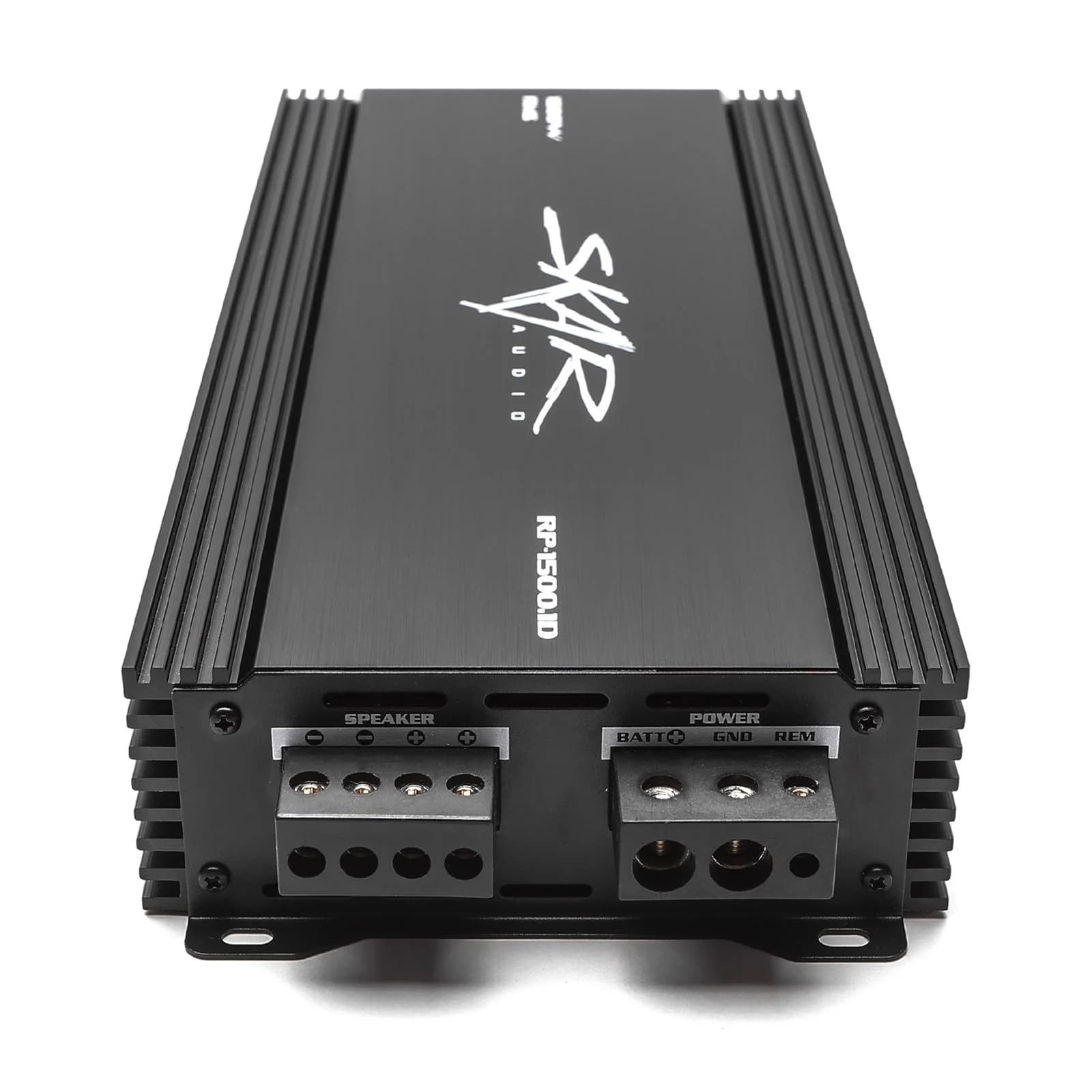

Skar Audio designed the RP Series RP-1500.1D model with two goals in mind. Designing the most efficient class d monoblock the company had ever set out to build but at a more affordable price than ever before was no easy feat. With those goals came the RP-1500.1D, an extremely powerful, reliable, and efficiency class d monoblock subwoofer amplifier.

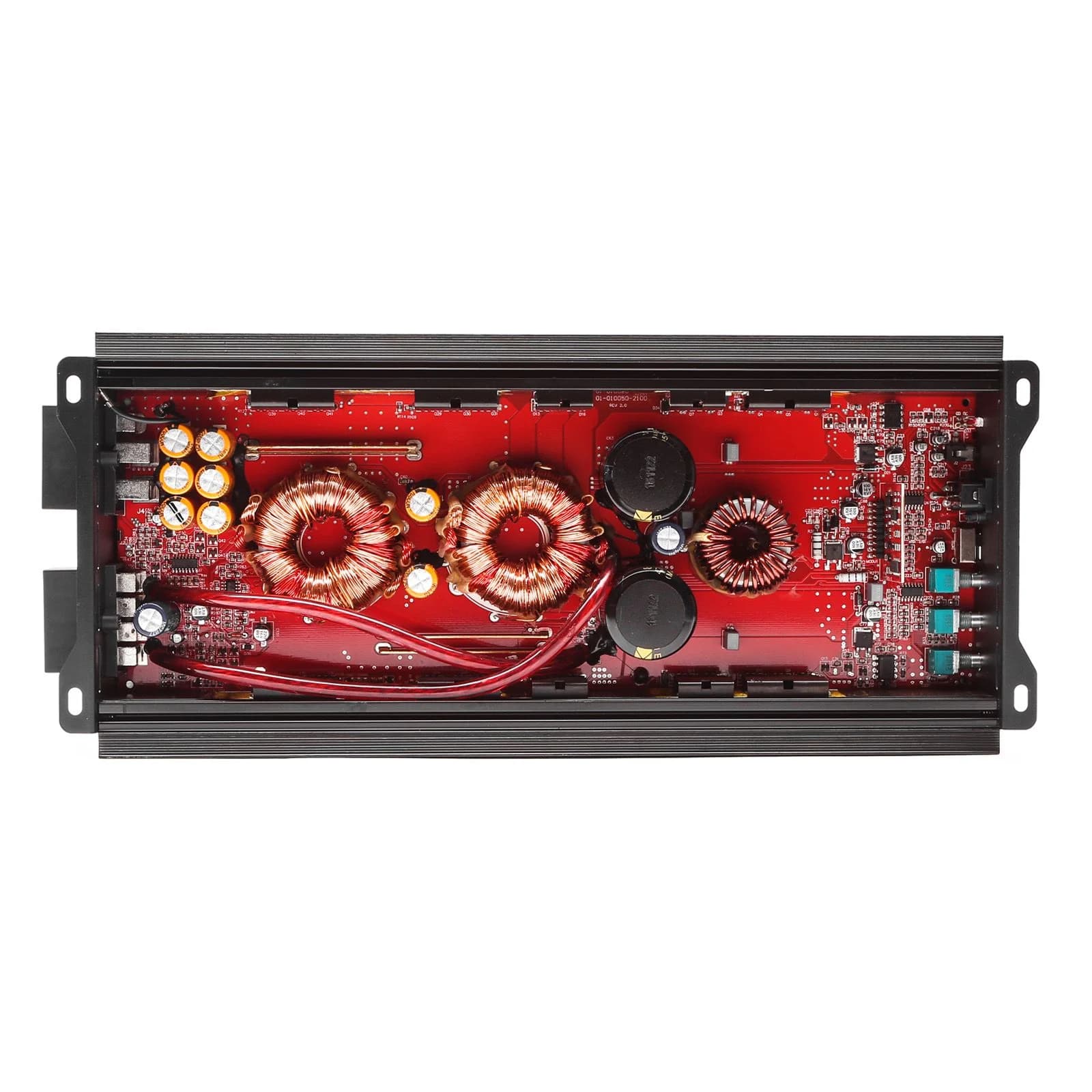

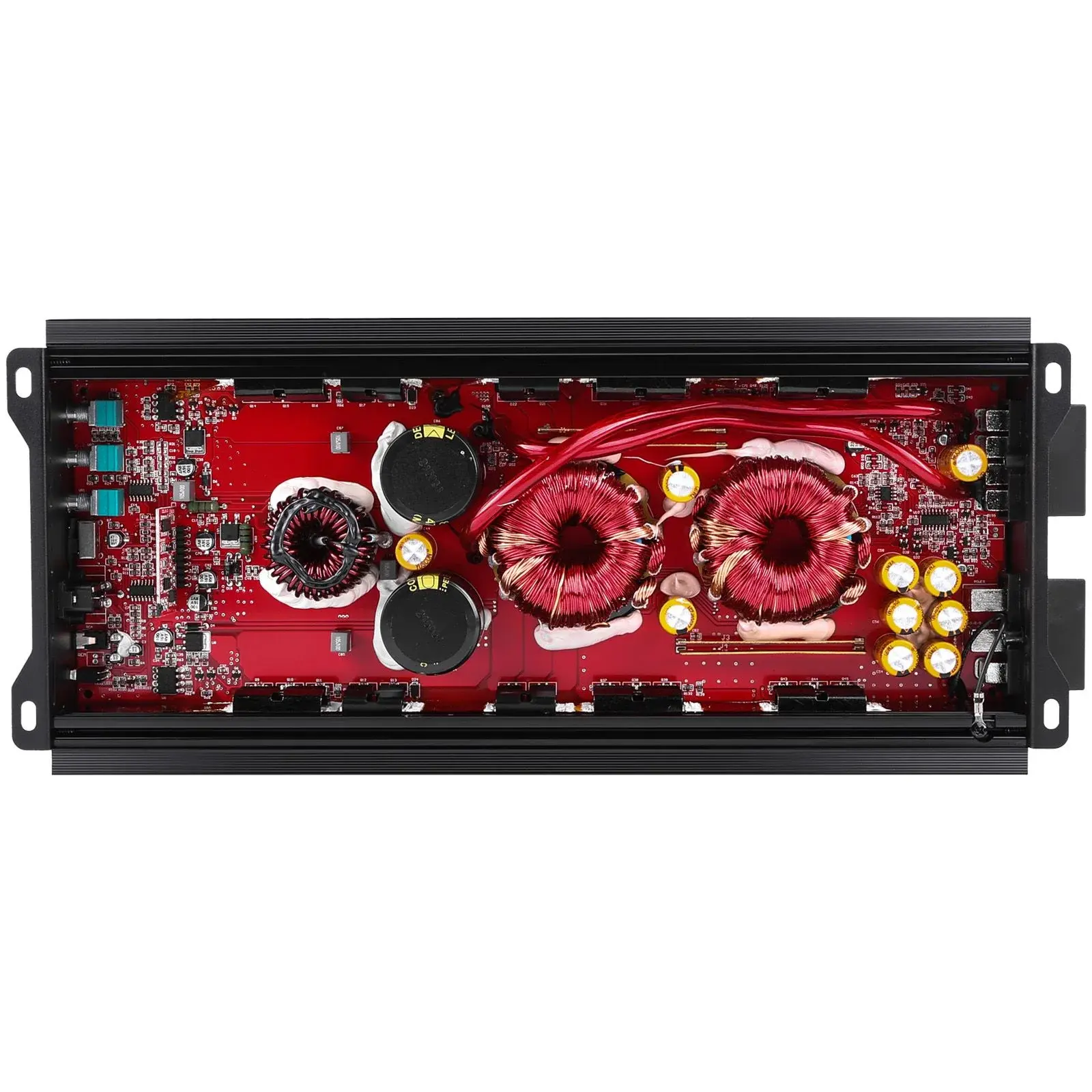

This amplifier is rated at a conservative 1,500 watts RMS power at a 1 ohm operating load, and is capable of putting out over 2,300 watts max power at 1 ohm. Featuring a high-speed MOSFET power supply, 4-way protection circuitry, advanced PCB board, and other internal high quality components, the RP-1500.1D shines when compared to anything in its class when it comes to power and reliability.

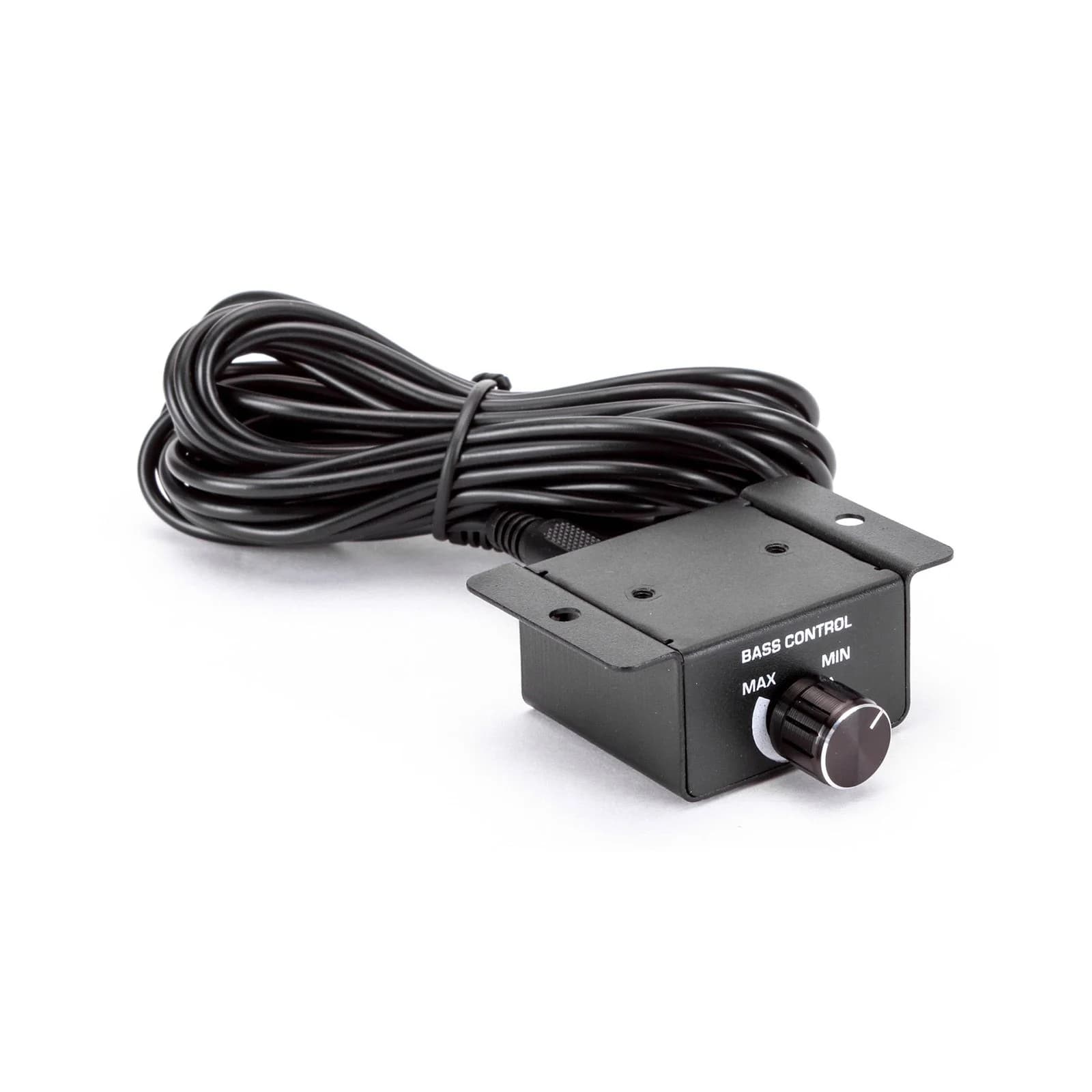

This amplifier comes with a remote subwoofer level control and bass knob allowing the user to have full control over their bass from the front of the vehicle. This makes for a great amplifier when looking for serious power to get your system loud, and will work great on a single subwoofer around 1,500 watts RMS or a pair of subwoofers around 600-800 watts each. Class D Circuitry design.
- Type: Monoblock Car Amplifier
- Class: D
- Bridgeable: No
- Strappable: No
- Fuse Rating: 120 Amp
- MOSFET Type: High Speed MOSFET Power Supply
- Damping Factor: 150u003c
- Amplifier Width: 6.20"
- Bass EQ (Boost): Yes (0‚+6 dB‚+12 dB)
- Output Channels: 1
- RCA Line Output: No
- Turn-On Circuit: Soft Turn-on Circuit
- Working Voltage: 8.5V – 16V
- Amplifier Height: 2.25"
- Amplifier Length: 14.37"
- Subsonic Control: Off – 50Hz
- Tri-Mode Capable: No
- Frequency Response: 20Hz – 250Hz
- RMS Power at 1 Ohm: 1500 Watts x 1 Channel (14.4v)
- Built-in Crossovers:
- Peak Power at 1 Ohm: 2300 Watts x 1 Channel (14.4v)
- RMS Power at 2 Ohms: 930 Watts x 1 Channel (14.4v)
- RMS Power at 4 Ohms: 550 Watts x 1 Channel (14.4v)
- Efficiency at 4 Ohms: 0.9
- Protection Built-in?: Yes – 4-Way (Thermal‚Voltage‚Speaker‚DC)
- Power u0026 Ground Inputs: 4 Gauge
- Signal-to-Noise Ratio: 85 dB
- Low Level Input (Gain): 6V – 0.2mV
- Low Pass Filter (Variable): 50Hz – 220Hz
- High Pass Filter (Variable):
- Power u0026 Protection Indicators: Yes – LED Indicators
- RMS Power at 4 Ohms (Bridged):
- Hi-Level Speaker Input Connection:
- Remote Bass Knob u0026 Cable Included: Yes
- MPN: RP-1500.1D
- UPC: 760999042732
- Low-Pass Filter: ["","",""]
- High-Pass Filter: ["",""]
- Crossover Multiplier: ["",""]
- Crossover Type (Switchable): ["","",""]
- Dynamic (Peak) Power at 1 Ohm: 1,873 Watts x 1 Channel (14.4v)
- Certified (RMS) Power at 1 Ohm:
- Dynamic (Peak) Power at 2 Ohms:
- Dynamic (Peak) Power at 4 Ohms:
- Certified (RMS) Power at 2 Ohms:
- Certified (RMS) Power at 4 Ohms:
- User Manual (PDF): https://www.skaraudio.com/user-manuals/amplifiers/RP-Series-User-Manual.pdf
